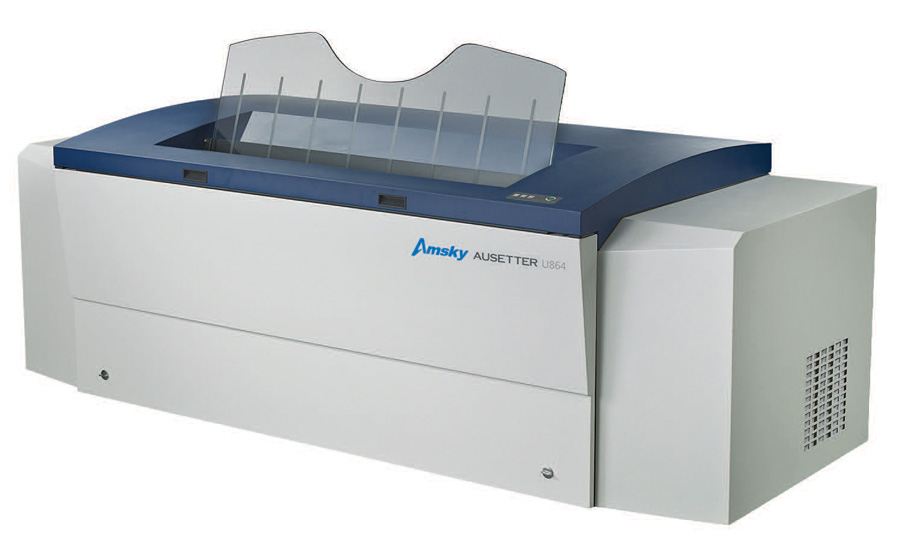

Ausetter 800
Full format Ctp up to 1130x900 mm plate size,
Available in Thermal or
Ultra Violet Versions

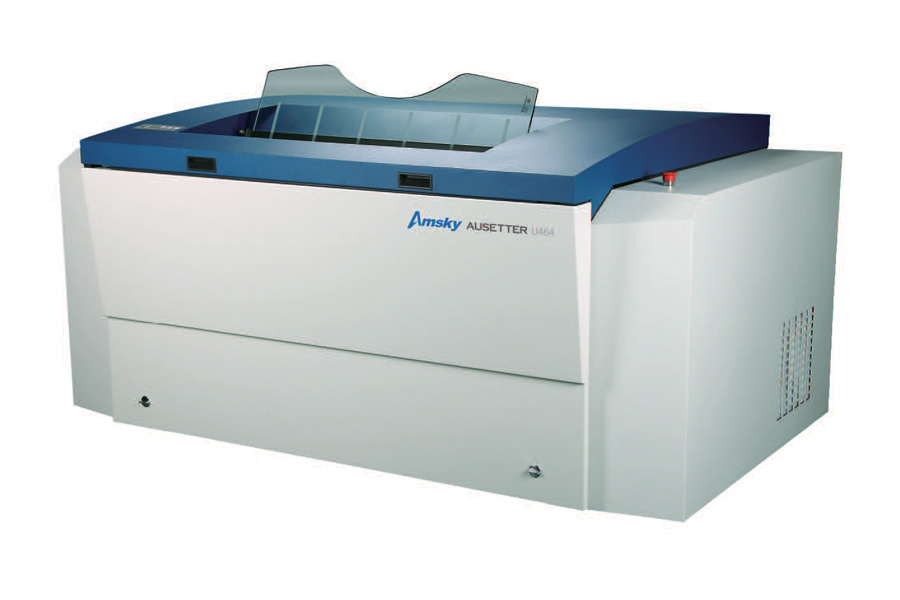

Ausetter 400
4 Up format Ctp up to 800×660 mm plate size,
Available in Thermal or
Ultra Violet Versions
Aurora
Available in Thermal or
Ultra Violet Versions
Autoloader and inline processing optional
VLF
Available in Thermal or
Ultra Violet Versions
Autoloader and inline processing optional
Ausetter
Available in both Thermal and Ultraviolet versions, the Ausetter series of CTP equipment is the perfect fit for cost effective and efficient prepress departments in the 400 or 800 sizes. The Ausetter line can be configured with 32, 48 or 64 laser diodes to meet your throughput requirements.

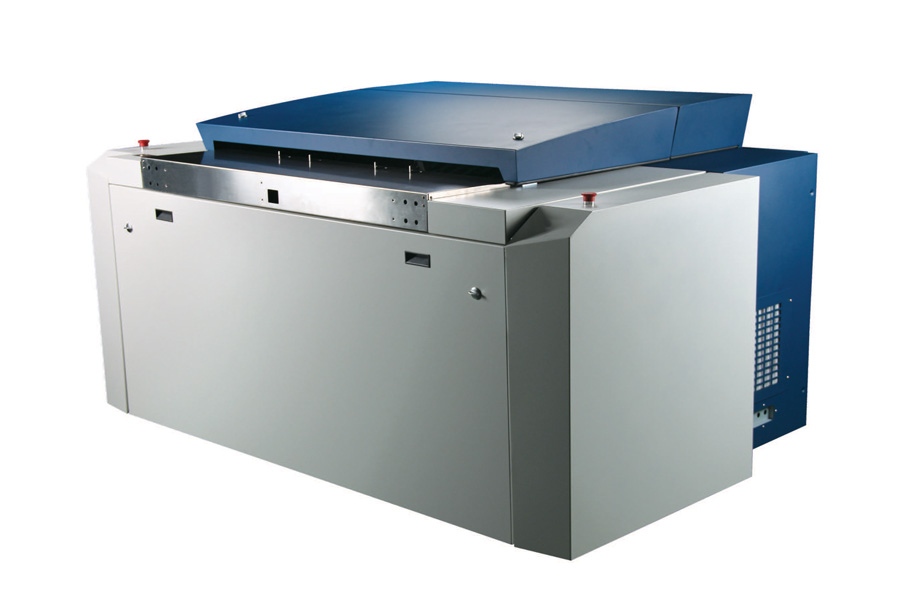

Aurora
The Aurora series provides automation for plate loading and inline processing options. As with the Ausetter, the Aurora is available in both Thermal and Ultra Violet versions. This version of the CTP equipment is designed to meet the needs of sites where automation is a key cost benefit

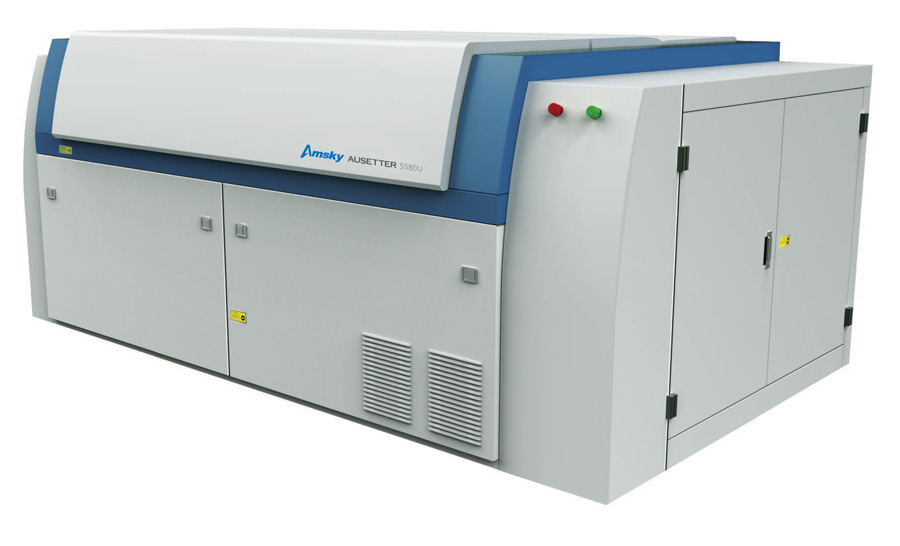

VLF
The VLF series extends your CTP capability to three sizes of Very large format presses.
The VLF series is also available in both Thermal and Ultra Violet versions. This version of the CTP equipment is designed to meet the needs of ultra high productivity sites
Software
All Amsky equipment is bundled with a Tiff Downloader or Tiff Catcher front end. This allows us to integrate with your existing or any workflow, as long as you can provide a one bit tiff file as output. Hot folder capabilities streamline workflow integration. Each Size of plate can have its own hot folder.
Model Comparison
| Model | Ausetter 800U |
Ausetter 800T |
Ausetter 400U |
Ausetter 400T |
Aurora 800 |
Aurora 8128 |
Aurora 8128N |
|---|---|---|---|---|---|---|---|
| Laser Type Wavelength |
UV Laser 405nm |
Thermal Laser 830nm |
UV Laser 405nm |
Thermal Laser 830nm |
UV or Thermal 405nm, 830nm |
UV or Thermal 405nm, 830nm |
UV or Thermal 405nm, 830nm |
| Max Plate Size | 1130x900 mm | 1130x900 mm | 800×660 mm | 800×660 mm | 1130x920 mm | 1130x920 mm | 1130x920 mm |
| Minimum Plate Size | 400x300 mm | 400x300 mm | 400x300 mm | 400x300 mm | 510x400 mm | 510x400 mm | 510x400 mm |
| Number of Discrete Lasers | 32, 48 or 64 | 32, 48 or 64 | 24, 32 or 48 | 24, 32 or 48 | 32, 48 or 64 | 128 | 128 |
| Plates Per Hour (dependent on number of lasers and sensitivity of media) |
16, 22 or 28 plates at 1030x800 mm plate size |
16, 22 or 28 plates at 1030x800 mm plate size |
16, 22 or 28 plates at 800x660 mm plate size |
16, 22 or 28 plates at 800x660 mm plate size |
16, 22 or 28 plates at 1030x800 mm plate size |
45 plates at 1030x800 mm plate size |
70 plates at 1030x800 mm plate size |
| Repeatability | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity |
VLF Model Comparison
| Model | 4658U | 4658T | 5569U | 5569T | 5580U | 5580T |
|---|---|---|---|---|---|---|
| Laser Type Wavelength |
UV Laser 405nm |
Thermal Laser 830nm |
UV Laser 405nm |
Thermal Laser 830nm |
UV Laser 405nm |
Thermal Laser 830nm |
| Max Plate Size | 1168x1473 mm | 1168x1473 mm | 1400x1750 mm | 1400x1750 mm | 1400x2032 mm | 1400x2032 mm |
| Minimum Plate Size | 508x394 mm | 508x394 mm | 508x394 mm | 508x394 mm | 508x394 mm | 508x394 mm |
| Number of Discrete Lasers | 64 | 64 | 64 | 64 | 64 | 64 |
| Plates Per Hour (dependent on number of lasers and sensitivity of media) |
14 plates at 1168x1473 mm plate size |
14 plates at 1168x1473 mm plate size |
12 plates at 1400x1750 mm plate size |
12 plates at 1400x1750 mm plate size |
10 plates at 1400x2032 mm plate size |
10 plates at 1400x2032 mm plate size |
| Repeatability | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity | 5µm at 25°C and 60% humidity |
